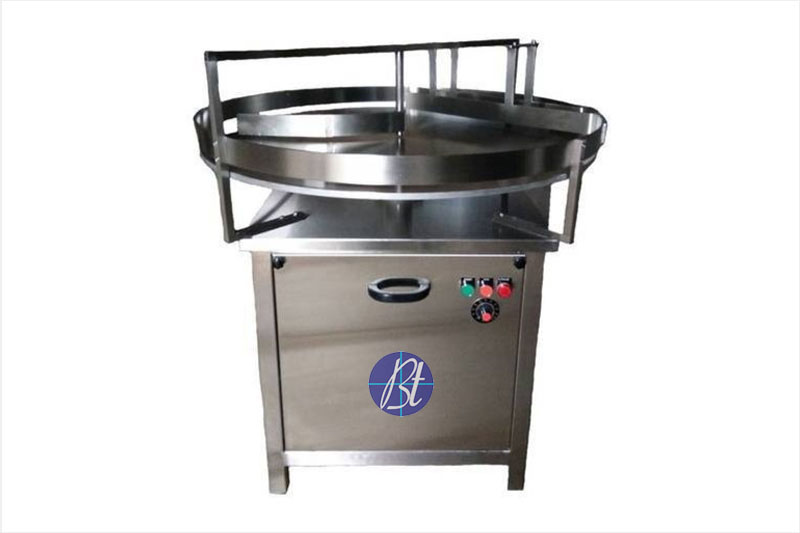

Machine Structure:
- All Contact Parts with made-up of S.S. 316 and Non-Contact Parts of SS 304/Others.
- The Machine frame Structure is made up to S.S. 304 pipe duly welded and grinded surfaces and the same is fully covered with S.S. 304 sheets. Side Bottom of Machine is completely covered with removable SS Covers.
- SS Control panel fixed with Machine frame.
Technical Specifications:
| Direction | Clockwise, 3600 Rotating |
|---|---|
| Production Speed | Depends upon production line speed |
| Plate Diameter | 30″ (material aluminium) |
| Electric Motor | 0.5 HP, 415V, Three Phase, 1440 RPM |
| Gear Box | 50 (Ratio 50:1) |
| Dimention in mm | 780(1) X 780(w) X 1060(h) |
| Power | Single Phase |
Sailent Features:
- Machine is constructed of SS-304.
- Vibration free construction for trouble free performance.
- Special self aligning bearings to ensure smooth operation
