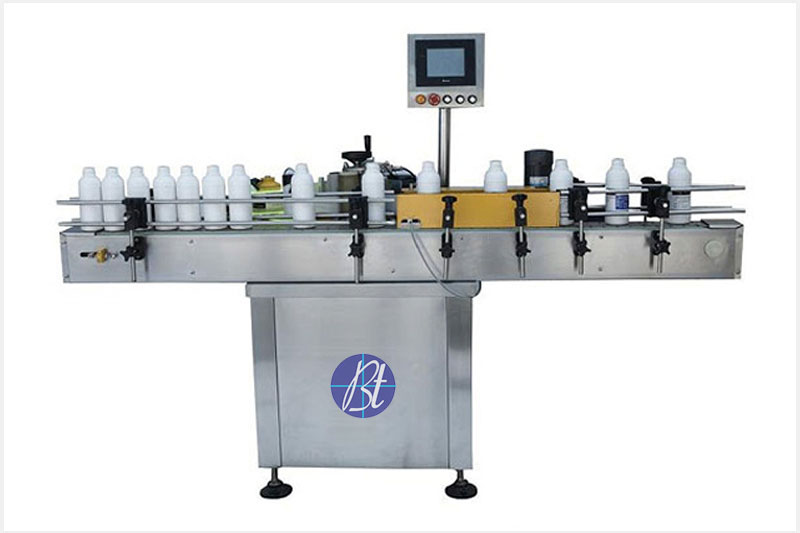

Machine Structure:
- The Machine frame structure is made up of MS material duly cladded with S.S.304 sheet.
- Contact Parts in direct contact with Product/Rubber Stoppers will have MOC of S.S. 316 and Non-Contact Parts MOC will be of S.S. 304/Delrin/POM.
- Infeed Conveyor guides are press fit type
- SS 304 Control Panel inside Machine frame.
- Machine Direction Left to Right.
Technical Specifications:
| Direction | Left to Right |
|---|---|
| Output Electrical Rating | Upto 120 containers / minute |
| Electrical Rating | (A) 0.25 hp / 1400 RPM Gear motor for variable speed (B) 0.50 hp / 1400 RPM Motor for pressing device (C) DC 6V Stepper motor |
| Power Characteristics | 230 Volts AC 50Hz |
| Construction | Top stainless steel matt finish & S.S. Pipe |
| Overall Dimension in mm | 1835 (1) X 600(w) X 1250 (h) |
| Conveyor Height | 800mm + 50mm |
| Input Specification | (A) Round container dia : 25 to 80mm |
| Label Roll Diameter | (B) Label : 30 to 180mm (LT 16 to 100mm (W)) |
Machine Salient Features:
- No bottle – Labelling stop system.
- User friendly label placing adjustment.
- Automatic speed control system with help of A.C. drive.
- Machine is constructed of SS-304
- Automatic bottle counter system.
