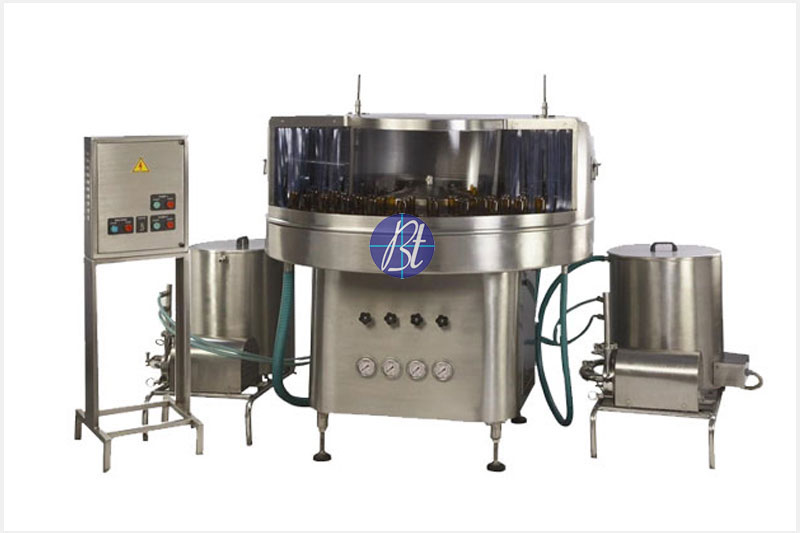

Machine Structure:
- The Machine frame structure is made up of MS material duly cladded with S.S.304 sheet.
- Contact Parts in direct contact with Product/Rubber Stoppers will have MOC of S.S. 316 and Non-Contact Parts MOC will be of S.S. 304/Delrin/POM.
- SS 304 Control Panel inside Machine frame.
Technical Specifications:
| Outside Diameter of Neck | 20mm to 38mm |
|---|---|
| Height of Container | Upto 280mm |
| Diameter of Container | 25mm to 100mm |
| Electrical Rating | 220V A.C. Single phase power supply |
| Output | Upto 6000 Bottles/hour |
Machine Salient Features:
- The Stationary nozzles avoid chipping of bottle necks.
- Four inner, One outer and One airwash.
- Bottle guide system specially for lightweight bottle.
- Geneva mechanism.
- High capacity centrifugal pumps to wash bigger bottles(500ml to 1000ml)
- Easy loading unloading with two rows.
- Pumps and tanks are mounted on portable stand for easy maintenance.
- Individual solenoid valve for each washing sequence, which eliminates Carbon plate and other accessories to reduce leakage and low maintenance.
