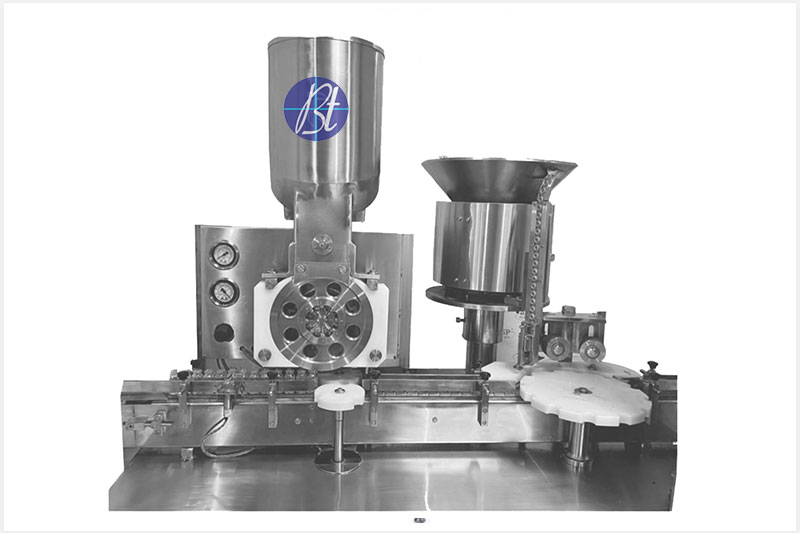

Machine Structure:
- The Machine frame structure is made up of MS material duly cladded with S.S.304 sheet.
- Contact Parts in direct contact with Product/Rubber Stoppers will have MOC of S.S. 316 and Non-Contact Parts MOC will be of S.S. 304/Delrin/POM.
- Infeed Conveyor guides are press fit type
- SS 304 Control Panel inside Machine frame.
- Machine Direction Left to Right.
Technical Specifications:
| Direction | Left to Right |
|---|---|
| Output | 80 to 120 Vial/min |
| Electrical Rating | 1 hp / 440 volts / 3 phase : 0.5 hp |
| Container Size | 25 to 40 mm Dia., Max. Height 75 mm |
| Fill Size | 50 mg to 1.50 gms |
| Rubber stoppering size | 20 mm |
| Overall Dimension in mm | 2800(1) x 750(w) x 1600(h) mm |
Machine Salient Features:
- Automatic in-feed and exit of vials.
- All contact parts made of SS-316 material with easy removal system for autoclaving / sterilization.
- Hopper can be completely dismantled for easy cleaning.
- Built-in rubber stoppering system
- Multiple dosing system with the help of change parts
- Safety features as clutch system for Vial Breakage.
- No vial – Filling stop system.
Change Parts
- Star wheel and back guide set for changeover of different container size.
- Infeed and Outfeed guide set for changeover of different container size.
