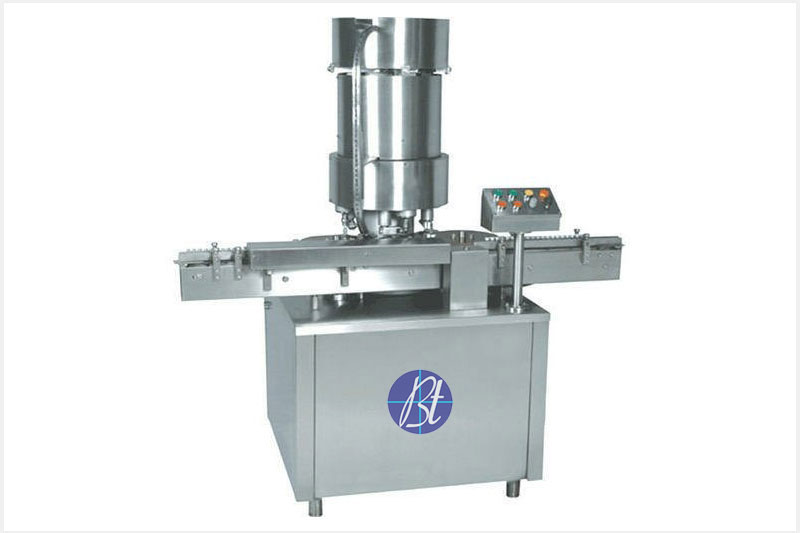

Machine Structure:
- The Machine frame structure is made up of MS material duly cladded with S.S.304 sheet.
- Aluminium Lower & Upper Turret assembly to hold the vials to perform sealing operation.
- Contact Parts will have MOC of S.S. 316L and Non-Contact Parts MOC will be of S.S. 304/Delrin/POM.
- Infeed Conveyor guides are press fit type
- SS 304 Control Panel inside Machine frame.
- Machine Direction Left to Right.
Technical Specifications:
| Direction | Left to Right |
|---|---|
| Output | Upto 5000 Vail/hour |
| Electrical Rating | 0.25 hp / 1400 RPM Motor for Conveyor Drive, 1 hp / 1400 RPM Motor for Pressing Device Drive , 6 V DC Stepper Motor |
| Container Size | 15 to 38 mm Dia, Height 50 to 210 mm |
| Change Parts | Star Wheel, Back Guide, Feed Worm, Vibrator Bowl, Delivery Chute |
| Overall Dimension in mm | 2135(1) x 925(w) x 2350(h) |
Salient Features:
- Minimum change over and setting time.
- Cap Feeder with variable speed system for feeding control of caps.
- Low noise level – Less power consumption.
- Sealing pressure can be varied to suit different gauges and size of caps.
- Machine construction in stainless steel finish
- Star wheel is equipped with safety clutch for automatic stoppage of machine in case of jamming / overloading.
