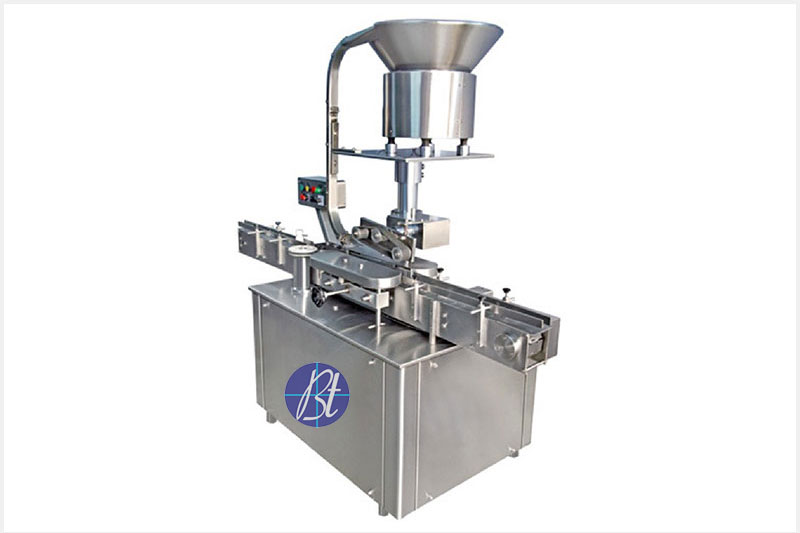

Machine Structure:
- The Machine frame structure is made up of MS material duly cladded with S.S.304 sheet.
- Contact Parts in direct contact with Product/Rubber Stoppers will have MOC of S.S. 316 and Non-Contact Parts MOC will be of S.S. 304/Delrin/POM.
- Infeed Conveyor guides are press fit type
- SS 304 Control Panel inside Machine frame.
- Machine Direction Left to Right.
Technical Specifications:
| Direction | Left to Right |
|---|---|
| Cap Diameter | 60 bottle/hour |
| Container Size | 40mm to 65mm Dia, 90mm to 130mm height |
| Cup size | 25mm to 28mm Dia, 19mm to 23mm |
| Electrical Rating | 0.75 hp |
| Power Required | 415 Volts/ 3 phase/ 50 Hz |
| Overall Dimension in mm | 1500(I) X 660(W) X 1500(h) |
Machine Salient Features:
- Rigid, Vibration free construction for trouble free operation and performance.
- Chute's no cup sensing device will stop the machine instantly.
- No chage parts required for change over of a container width or Diameter As container holding.
- Height adjustable for cup pick up for different heights of container or Precise pick up is made simple through a jack.
- Completely syncronized pressing rollers for perfect tight fit cup pressing and easily adjestable device for different height of container.
- Easy loading unloading with two rows.
- Pumps and tanks are mounted on portable stand for easy maintenance.
- Individual solenoid valve for each washing sequence, which eliminates.
- Carbon plate and other accessories to reduce leakage and low maintenance.
